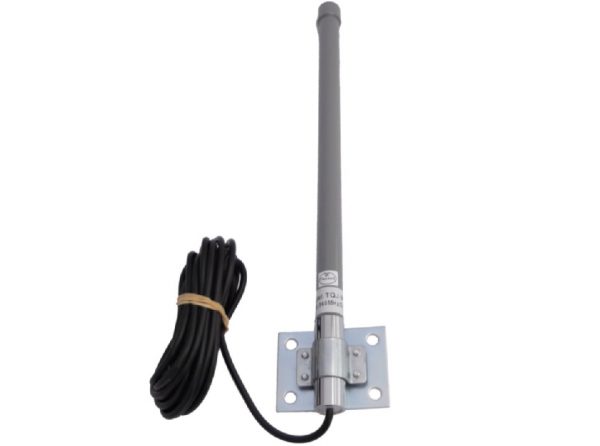

900MHz 3dB Vertical Fibreglass Whip Antenna

PD9241 900MHz 3dB Vertical Fiberglass Whip Antenna

A robust quarter wave omni-directional whip for shorter range applications of all QTech 900MHz products

An ISM Band 900MHz, 3dBi Fibreglass encapsulated vertical whip, 400mm Long and is supplied with 5M of low loss coax terminated with a SMA (Male) connector.

Use for a professional, external mounting option for the WP2P systems.

SKU: PD9241 Category:

Specifications

PD9241      900MHz 3dB Vertical Fibreglass Whip Antenna

Frequency Range 806 – 960MHz
Bandwidth 70MHz
Gain 3dB
Vertical Beam width 33 Degrees
VSWR ≤1.5
Nominal Impedance 50 Ohms
Polarization Vertical
Maximum Power 100 Watts
Dimensions 400mm
Weight 0.35kg
Wind Strength 60m/s
Connector SMA Plug
Rod Diameter 35 – 50mm

Ordering Details

  • Product Code: PD9241

Please contact us for pricing and further details

or click here for our full range of antennas
