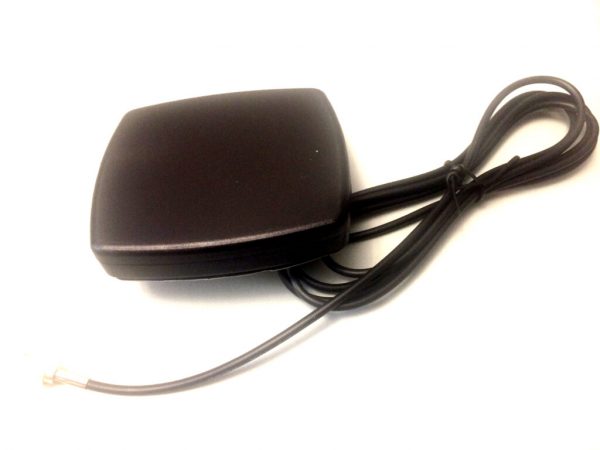

Low Profile Antenna 900MHz ISM – ISM9-SLP-1.5M-SMA

The ISM9-SLP Series is a high performance permanent mount 915MHz ISM antenna for external use on mobile or fixed application.
The PIFA radiating element is housed in a UV resistant, ruggedised ABS housing which is only 16mm in height and is resistant to vandalism or theft.
The ISM9-SLPis ideal for application within ISM bands such as LoRa and SIGFOX

Features:

  • Compact, low profile design – only 16mm tall

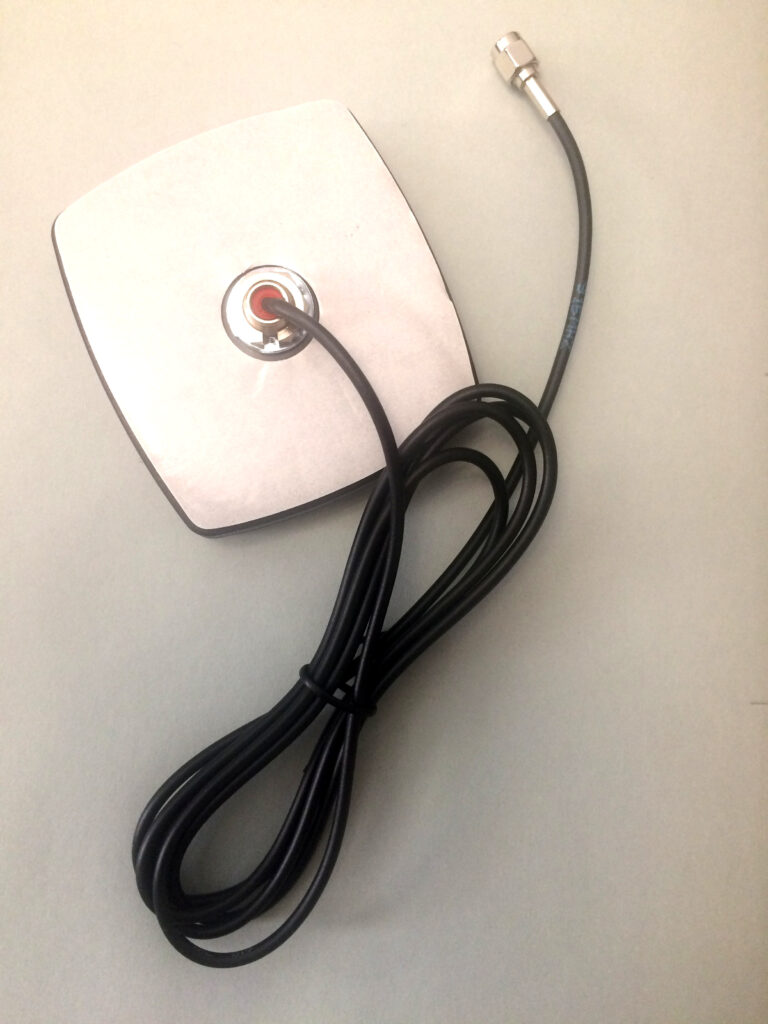

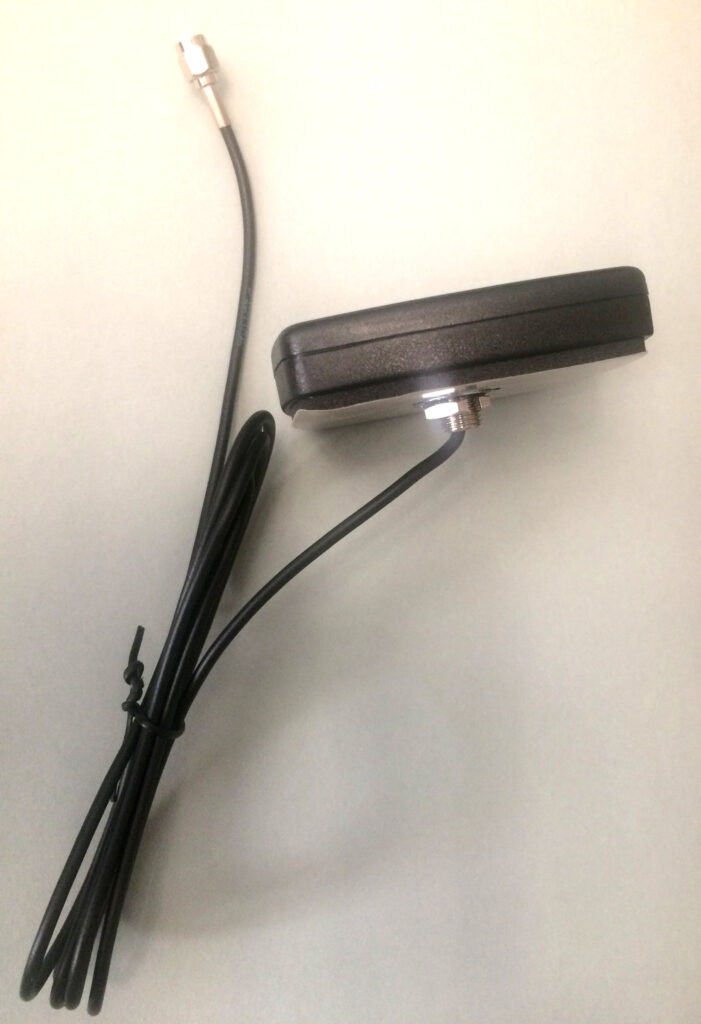

  • Mounts via M10 thread stud and nut
  • IP65
Category:

Specifications

Electrical Specifications:

Band                     915MHz ISM
Frequency            902-928MHz
Gain                      dBi 3*
VSWR                   <2.0:1
Impedance          50 Ω
Power Max          50W
Polarisation         Vertical

*Measure on a 300mm x 300mm ground plane

Mechanical Specifications:

Material                   ABS
Colour                      Black
Ingress rating         IP65
Dimensions mm    16(H) x 80(W) x 74(D)
Weight grams         95
Cable / Connector 1.5m RG174 cable terminated with SMA male connector

Operating Temp   °C -40 to +85

Operating Temp    °C -40 to +85

Ordering Details

Product Code: ISM9-SLP-1.5M-SMA
