CM910 Cellular Modem
CM910 Cellular Modem
CM910 cellular modem

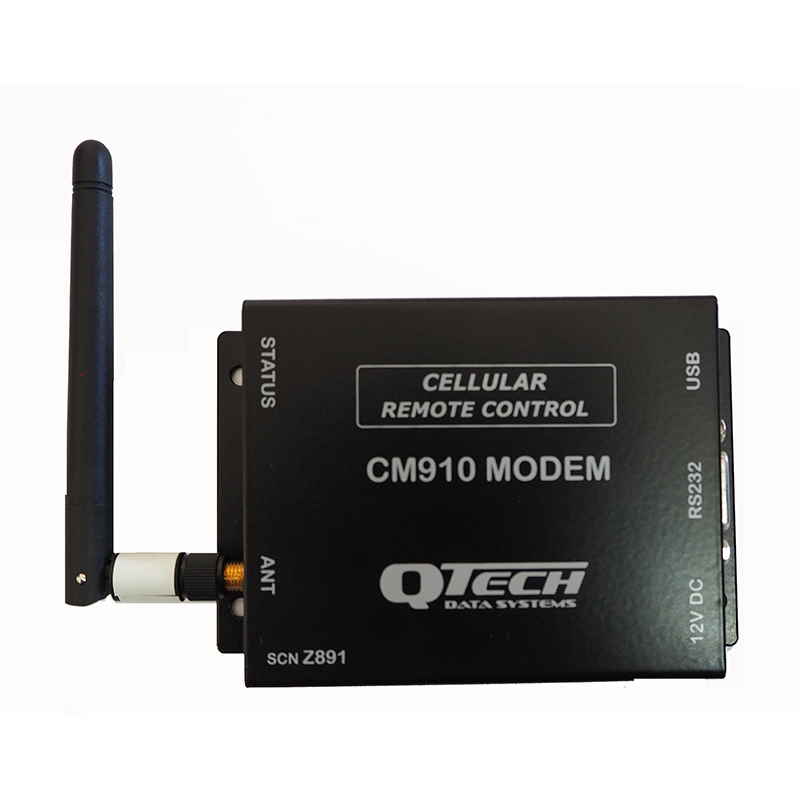

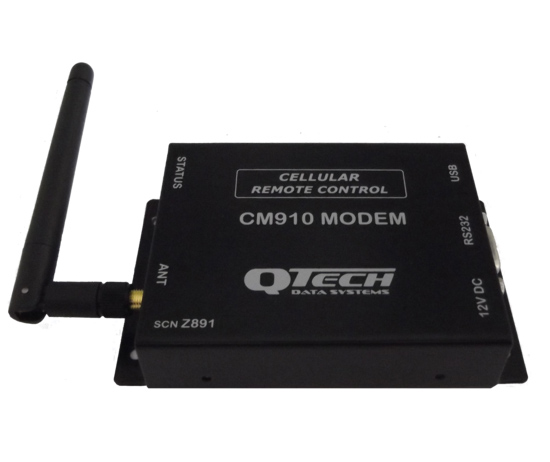

CM910 4G Cellular Modem

The QTech CM910 Cellular Modem is a standalone 4G LTE cellular modem, suitable for mobile, industrial and general purpose communications applications. An ideal M2M platform providing for SMS and data connectivity via a Serial or USB (2.0) interface.

Modem specifications:
3G bands (MHz): B1(2100), B5(850), B8(900);
4G bands (MHz): B1(2100), B3(1800), B5(850), B8(900), B28(700).
Built in UDP/TCP/FTP/SMTP stack.
Operates with the Standard and extended AT command set.

Key Benefits

  • No static IP-address needed
  • Low power consumption
  • Low running costs and easy to install
  • DATRAN XL4 Plus is CM910 aware
  • Wide range of operating voltages from 9-24V DC
  • Connectivity with all current New Zealand and Australian telecommunication companies

Enable high speed TCP data connections with your SCADA sites. Simple low cost implementation makes an ideal solution for those non-critical sites where guaranteed radio communication is not so essential or where radio paths do not exist.

This product requires an antenna and power supply. Please select the most suitable option for your application from our range of Antennas & Accessories

Category: Tag:

Specifications

Modem specifications:
3G bands (MHz): B1(2100), B5(850), B8(900);
4G bands (MHz): B1(2100), B3(1800), B5(850), B8(900), B28(700).
Built in UDP/TCP/FTP/SMTP stack.
Operates with the Standard and extended AT command set.

ELECTRICAL

• Operating Voltage: 12 – 24 Volts DC
• Power Connector: 2.1mm DC Socket, centre pin positive
• Operating Current: ~14mA @ 12V
~10mA @ 24V
• Antenna: 50 Ohms, SMA connector

CONNECTIVITY

• USB Port3: Type B socket
• RS232 Port4: DB9 female connector
• Operating Conditions: 0 – 70°C
90% humidity, non-condensing

PHYSICAL

• Case Size: 112 x 75 x 25mm (Overall)
• Weight: 261 grams (with supplied antenna)
• Mounting Holes: 4x M4 mounting holes at
~102 x 50mm centres

Ordering Details

  • Product Code: PD9320

Please refer to our website for further product information and optional accessories.

Product Downloads

User Guide – CM910 Cellular Modem

Datasheet – CM910 Cellular Modem
